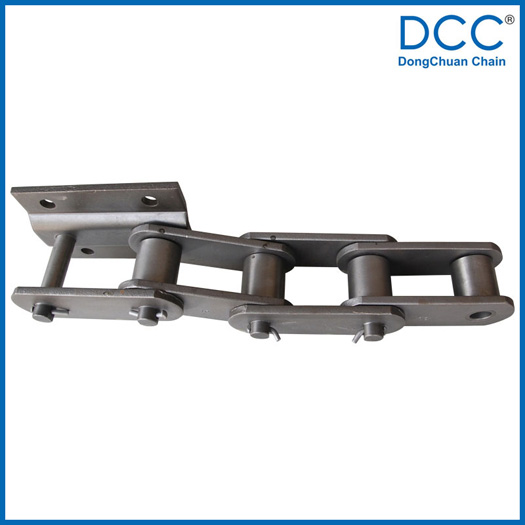

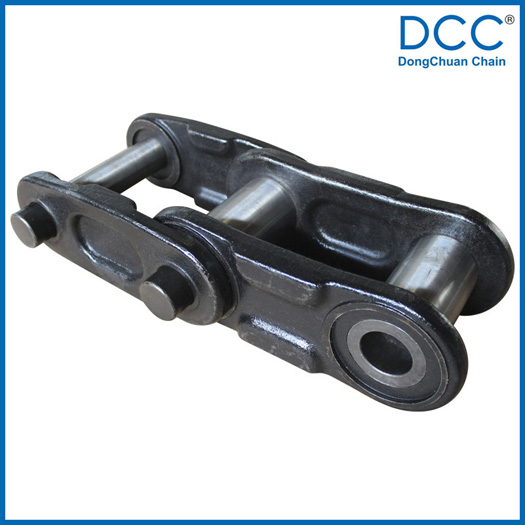

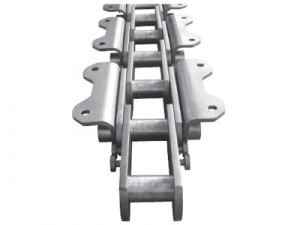

水泥鏈

水泥鏈?zhǔn)嵌肥教嵘湹钠渲幸环N，此類鏈條應具有好的耐磨性和很高的強度。為了提高鏈條滾子和套筒的韌性和耐磨性，我們采用了二次熱處理的加工工藝，對鏈條的套筒和滾子先進行滲碳處理，然后再二次熱處理的方式，使套筒和滾子有較高的表面硬度，芯部也具有很好的韌性，大大提高了滾子套筒的壓潰試驗強度。由于該鏈條一般都為垂直使用，要求鏈條必須具備足夠的框架牢固度，我們采用了較大過盈量的配合要求，鏈條裝配由油壓機將各個零件裝配到位。提高了鏈條的整體牢固度。使鏈條運行時不會產生零件松動脫落的現象。

水泥鏈適用領域：水泥，礦山，糧食，鋼廠等行業。主要用于提升物料，工作環境較為惡劣，含有大量粉塵，和較硬的顆粒。

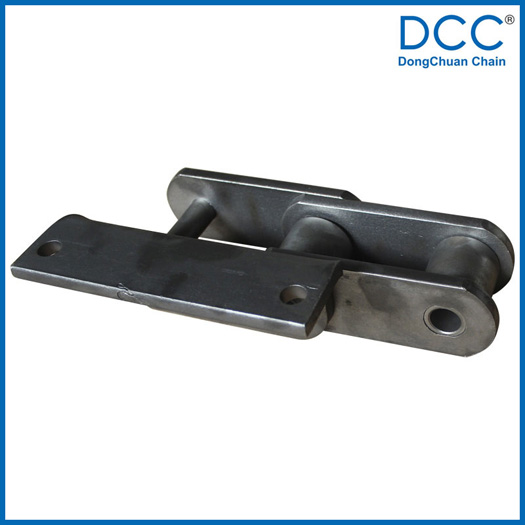

斗式提升機鏈（水泥鏈）

水泥鏈

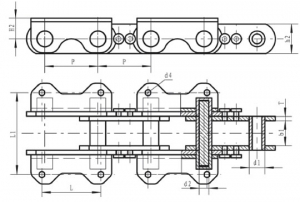

Chain No.	Pitch P (mm)	Diameter of roller d1 (mm)	Diameter of pin d2 (mm)	Length of pin b2 (mm)	Inner width of inner link b1(min) (mm)	Thickness of sidebar T (mm)	Height of sidebar h2 (mm)	Height of attached plate h2 (mm)	Tensile strength Q (min.)(KN)
NE model lifting chain for elevators
NE15-101.6	101.6	26.5	11.5	70	27	6	35	35	128.1
NE30-152.4	152.4	35	15.5	90	36.5	8	50	50	245
NE50-152.4	152.4	35	15.5	90	36.5	8	50	110	245
NE100-200	200	42	19.1	120	51.8	10	60	125	375
NE150-200	200	48.5	22.23	120	57.8	10	60	125	375
NE300-250	250	70	35	165	75	16	100	150	450
NE300-250A	250	63.5	31.75	146	67.4	12	90	150	450
NP152.4	152.4	357	15.88	88	38	7.9	45	105	245
FE12600	152.4	35	15.88	86	36.5	7.9	45	120	245
NE100/2L	200	44.5	19.05	114	53	10	60	125	400
NE150-B/2L	200	44.5	19.05	114	53	10	60	125	400
NE200/2L	250	63.5	31.75	140	67.4	12	90	150	750
9060 G4/4L	152.4	34.93	19.05	94.5	38.1	9.5	50.8	120	312
P152.4-A/2L	152.4	36	17.33	85	36.5	8	50	105	160
DK 19200M G4/2L	200	38.1	15.77	86	36.5	8	45	125	312
NE150-A/2L	200	48.5	22.23	122	57.6	10	75	125	529
P152.4 3L	152.4	31.75	15.77	109	54	9.6	38.1	139.7	145
P125/2L	125	52	17	80	31	8	580	100	219.52
FE12600-S/2L	152.4	34.93	15.88	86	36.5	7.9	45	120	160
NE150/2L	200	48.5	22.23	118	57.6	10	75	125	529
NE300-250/2L	250	70	35	165	75	16	100	150	1107
P152.4/2L	152.4	35.7	15.88	88	38	7.9	45	105	160
DS17200-S G4/2L	200	40.08	19.05	106.5	50.8	9.5	50.8	130	260
P250-G4/2L	250	73	38.5	183.5	82	16	115	180	1200
NE300	250	70	35	165	75	16	100	150	1107

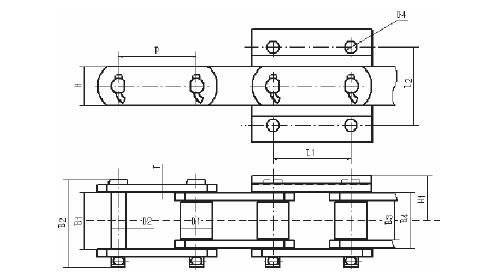

Dimensions of attached plate
Chain No.	d4 (mm)	L1 (mm)	L2 (mm)
NE15-101.6	10	50	50
NE30-152.4	15	75	70
NE50-152.4	15	75	70
NE100-200	15	75	70
NE150-200	18	100	80
NE300-250	18	140	100
NE300-250A	20	140	100
NP152.4	15	75	70
FE12600	15	75	70

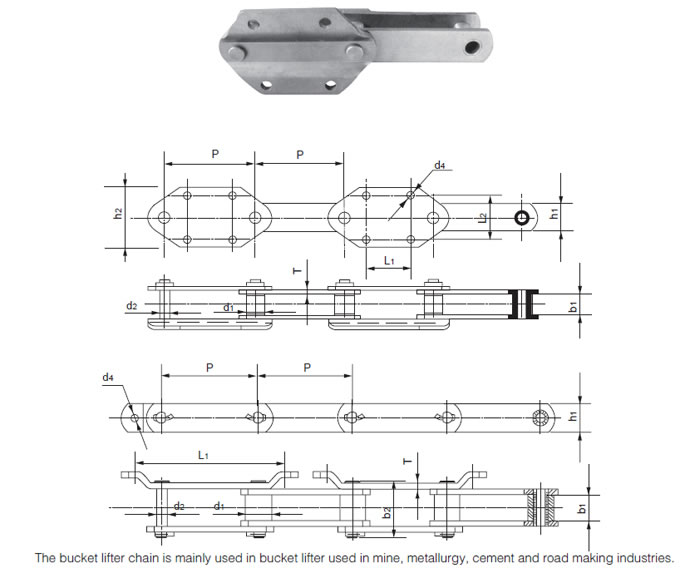

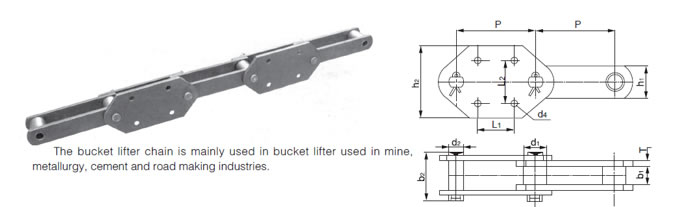

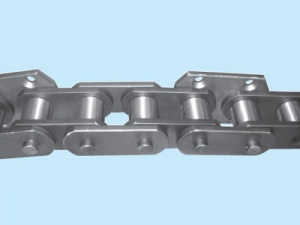

Bucket Lifter Chain

Chain No.	Pitch P (mm)	Diameter of roller d1 (mm)	Diameter of pin d2 (mm)	Length of pin L (mm)	Inner width of inner link b1 (mm)	Thickness of sidebar T (mm)	Height of sidebar h2 (mm)	Height of attachment h2 (mm)	Tensile strength Q (min.)(KN)
NP150	150	31.8	14.17	69	30	6.35	38.1	105	200
NP228.6	228.6	62	24.2	136	64	13	70	70	440

Dimensions of attached plate
Chain No.	d4 (mm)	L1 (mm)	L2 (mm)
NP150	14	75	75
NP228.6	17	355.6

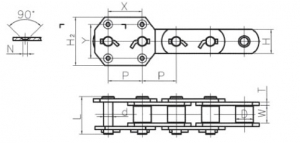

Chain No.	Pitch P (mm)	Inner width of inner link W (mm)	Diameter of roller D (mm)	Sidebar		Pin		Dimension of attachment				Tensile strength(KN)
Chain No.	Pitch P (mm)	Inner width of inner link W (mm)	Diameter of roller D (mm)	Height H (mm)	Thickness T (mm)	Diameter d (mm)	Length L (mm)	H2 (mm)	N (mm)	X (mm)	Y (mm)	Tensile strength(KN)
NSE200	100	51.8	44.5	60	10	19.1	111.5	150	18	100	105	420
NSE300	100	57.6	48.5	75	7.5	22.23	120	150	18	100	105	520
NSE400	125	67.4	63.5	90	12	31.75	139.3	180	18	125	130	735
NSE500-1	125	75	70	100	16	35	170	180	18	125	130	980
NSE500-2	125	75	71.5	102	16	36	165	180	18	125	130	1200
NSE600H	125	75	75	105	16	40	165	185	18	125	136	1260
NSE700	150	85	85	125	16	48	180	226	22	150	165	1470

Model	P (mm)	B1 (mm)	D1 (mm)	H (mm)	H1 (mm)	T (mm)	B2 (mm)	D2 (mm)	L1 (mm)	L2 (mm)	D4 (mm)	B3 (mm)	B4 (mm)
P200/2L	200	64.4	42	62	54.85	8	100	21	100	100	16	47	63.8
P150/2L	150	43.6	31.8	38.1	39.8	6.35	69	14.17	75	75	14	30	43.2
P100/4L	100	73	40.1	50	58	10	111	19.05	100	100	16	52	72.5
TBH100/4L	100	79	50.8	72	64	10	120.5	25	100	100	18	57.5	78
C100-K4/4L	100	89	52	72	61.5	10	134	27	100	100	18	66.3	88.3
C125-K4/4L	125	79.8	50.8	70	63.5	10	101	24	125	110	22	57	79
P76.2-K4/4L	76.2	54.5	34.9	44.5	46.25	7.9	70.9	16	75	75	14	37	52.8
P100-K4/4L	100	73	40.1	50	58	10	111	19.05	100	100	16	52	72.5
P125-K4/4L	125	79.8	50.8	70	63.5	10	121	24	125	110	18	57	79
P100-G4-Y1/4L	100	80	50	75	60	10	120	26	100	115	16	55	75.9
P75-G4/4L	75	43	29	38	37.5	6	68	14.17	75	80	15	30	42.5

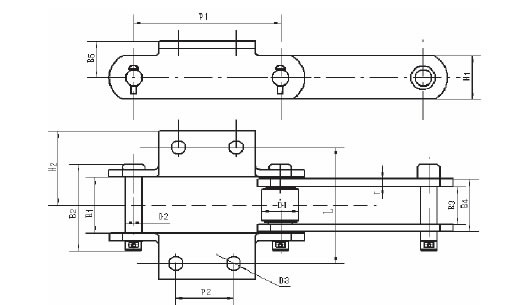

Model	P1 (mm)	P2 (mm)	H1 (mm)	H2 (mm)	B1 (mm)	B2 (mm)	B3 (mm)	B4 (mm)	B5 (mm)	D1 (mm)	D2 (mm)	D3 (mm)	T (mm)	L (mm)
P152.4	152.4	60	45	79	61.7	94	44.5	61	38	57.2	15.77	14.8	8
DT-30A-A	152.4	60	45	77	57.5	89.5	39.5	56	38	38.1	17.33	13	8	120
DT-30A	152.4	60	45		58	89.5	40	56	37.5	38.1	16	13	8	120

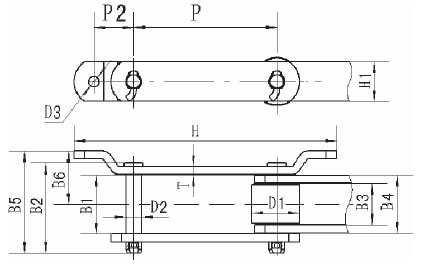

Model	P(mm)	D1(mm)	D2(mm)	H1(mm)	B2(mm)	B1(mm)	T(mm)	Tensile strength(KN)
4004	228.6	76.2	25.4	63.5	114	6638	12.7	337.8
4065	228.6	108	31.75	88.9	170.2	77.72	15.88	995
P228.6-D	228.6	80	24.2	70	136	64	13	440
P228.6	228.6	62	24.2	70	136	64	13	440

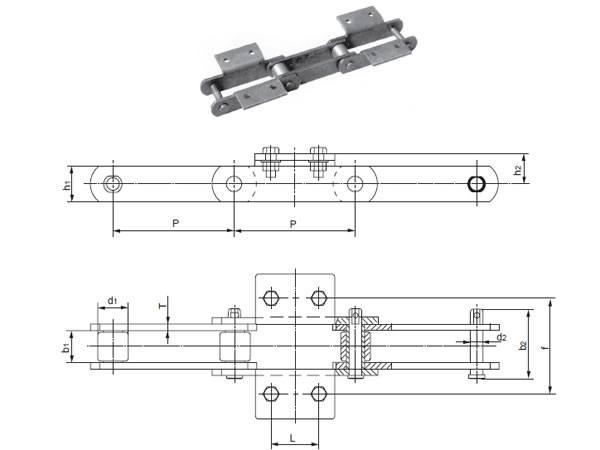

Chain No.	Pitch P (mm)	Inner width of inner link b1 (mm)	Diameter of roller d1 (mm)	Height of sidebar h1 (mm)	Thickness of sidebar T (mm)	Length of pin b2 (mm)	Diameter of pin d2 (mm)	Height of attached plate h2 (mm)			Tensile strength Q (min.)(KN)
Chain No.	Pitch P (mm)	Inner width of inner link b1 (mm)	Diameter of roller d1 (mm)	Height of sidebar h1 (mm)	Thickness of sidebar T (mm)	Length of pin b2 (mm)	Diameter of pin d2 (mm)	L (mm)	f (mm)	h2 (mm)	Tensile strength Q (min.)(KN)
DT-10	100	20.5	44	26	4	42	9.54	40	69	25	82
DT-15A	101.6	15.7	38.1	26	4	37.1	9.54	40	63.5	22.3	82
DT-15B	101.6	31	44.45	38	7.9	75.5	15.88	40	110	35	140
DT-50	160	33.7	38	50	8	82.5	15.88	60	130	50	240
DT-35	160	36	37.5	40	6	73	15.88	60	130	35	180
DT-30D	152.4	37	38.1	45	8	86.6	16	60	120	37.5	224
DT-30A	152.4	40	38.1	45	8	89.6	16	60	120	37.5	224
DT-150	200	57.6	48.5	75	10	126	22.2	80	160	40	400
DT-200	250	67.4	63.5	90	12	146	31.25	120	200	75	580

中央提升鏈

Chain No.	Pitch P (mm)	Inner width of inner link b1 (mm)	Diameter of roller d1 (mm)	Diameter of pin d2 (mm)	Height of sidebar h2 (mm)	Thickness of sidebar T (mm)	Hole height of attached plate (mm)	Central distance of attached plate L1(mm)	Hole diameter of attached plate d4 (mm)	Tensile strength Q(KN)
RU95	180	85	53.5	33.2	100	15	200	280	18	950
RU150	180	100	66	45.4	115	20	200	330	18	1500
RU200	180	105	78	55	150	20	200	330	18	2000
