詳細描述:

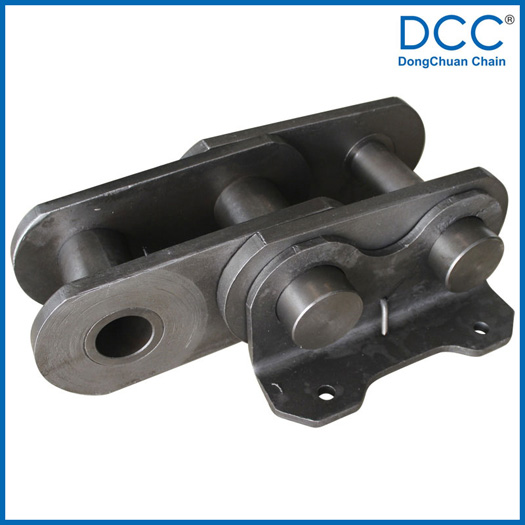

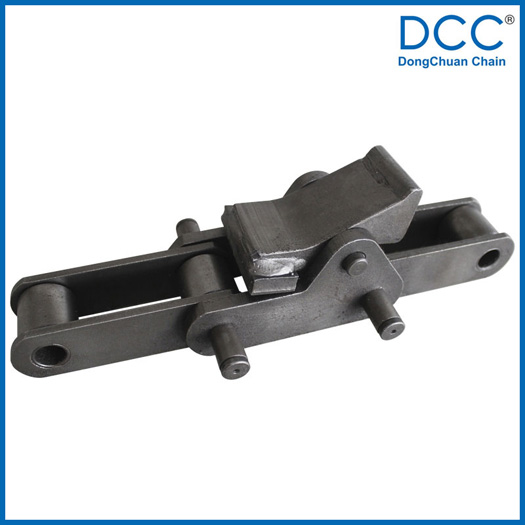

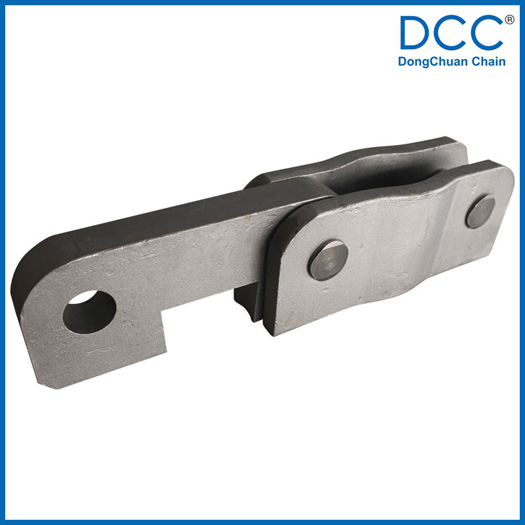

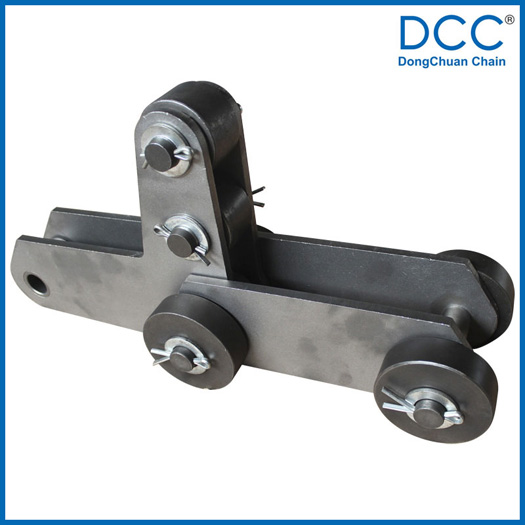

冶煉軋制馱載鏈

This range of conveyor chain is manufactured for metallurgy industry, for instance, in steel mills. To meet the application requirements under severe environments, it is especially crafted to support high load carrying under high temperature conditions. For instance, our alloy steel chains for heavy duty uses adopt special bearings as the rotational part, so as to ensure increased load carrying capacity and reduced operational risks.

Our conveyor chain supports conveying of steel coils and steel sheets as well as steel rollers. In addition, we can offer metallurgy industry-use chains for material cooling and drying, steel ingot lifting, steel pipe pushing and drawing, as well as more purposes.

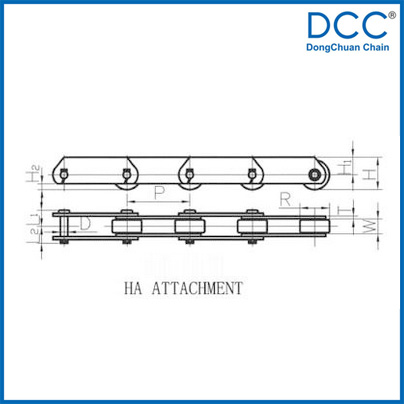

Chain No.Roller typePitch P (mm)Inner width of inner link W (mm)Diameter of roller R (max) (mm)Height of chain H (mm)Data of sidebarData of pinTensile strength Q (KN)
H1 (mm)H2 (mm)T (mm)B (mm)L1 (mm)L2 (mm)D (mm)
W03075R7516.131.836.9214.93.25018207.9230
W03100R10016.131.836.9214.93.25018207.9230
W07100R1002240442444.56824.52911.170
W07150R1502240442444.56824.52911.170
W08150R1502744.550.32886.380313511.180
W11150R1503050.857.4326.46.39033.54014.27115
W11100R1003050.857.4326.46.39033.54014.27115
W19152R152.437.157.263.5356810541.547.515.9190
W19200R20037.16573.54110810541.547.515.9190
W19250R25037.16573.54110810541.547.515.9190
W25250R25051.480905013.8101225254.519.1250
W25300R30051.480905013.8101225254.519.1250
W28200R200498595.55310.510145526122.2285
W28300R30057.28595.55310.510145566522.2285
W48250R25066.7110112621212.7170687725.4485
W48300R30066.7100112621212.7170687725.4485
W48400R40066.7100112621212.7170687725.4485
W51450R4507711012570171620082.59331.8510

Related Names
Cranked Link Chain | Steel Mill Chain | Slat Conveyor Chain
